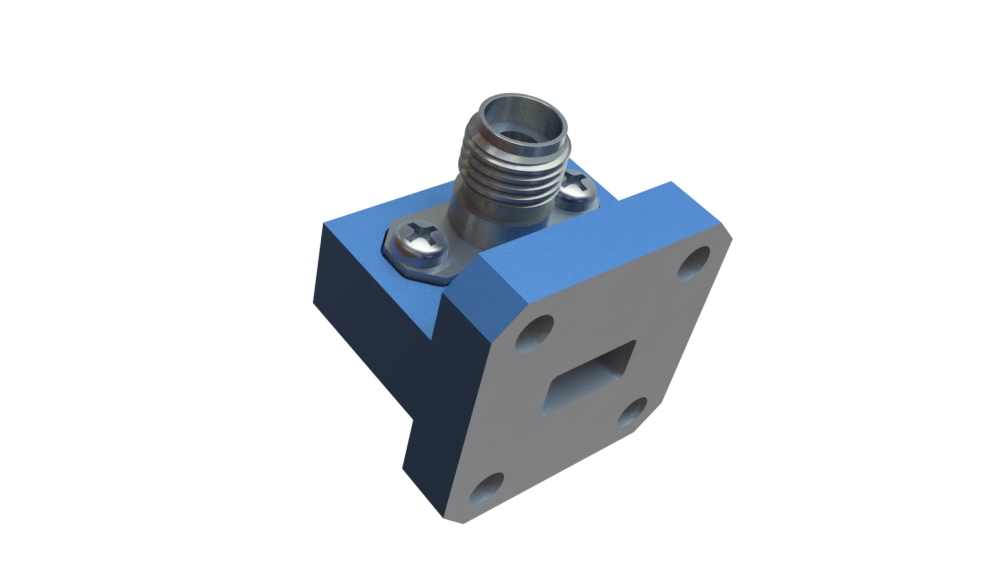

WR28 to Coaxial 2.92mm adapter
| Parameters | Value |
|---|---|
| Connector | 2.92mm |
| VSWR, max | 1.25 |
| Waveguide Size | WR28 |
| Insertion Loss, dB | 0.5 |
| Lower Frequency, GHz | 32 |
| Upper Frequency, GHz | 36 |
| Working Temperature, C degree | −10÷85 |
You can request a quote for this product by filling out this form.
Please contact us for all available specifications and configurations.
